Slimbox ® is a renowned and established brand in Australian signage and display industries. We specialise in design, manufacture and distribute compact, versatile, aesthetic LED back lighting solutions to increase energy efficiency and reduce the carbon footprint for the signage, architectural, commercial and industrial market. Slimbox® product categories range from slim lightbox, magnetic front open lightbox, snap frame lightox, soft fabric lightbox, acrylic lightbox, menu lightbox, under awning lightbox, outdoor lightbox, directory lightbox, freestanding lightbox, LumiPANEL® and Digital Printing. We built entirely base on Australian Standards with 12 month warranty. We also stock standard sizes for same day delivery service to Sydney metro area and overnight service for most cities around the country.

DL

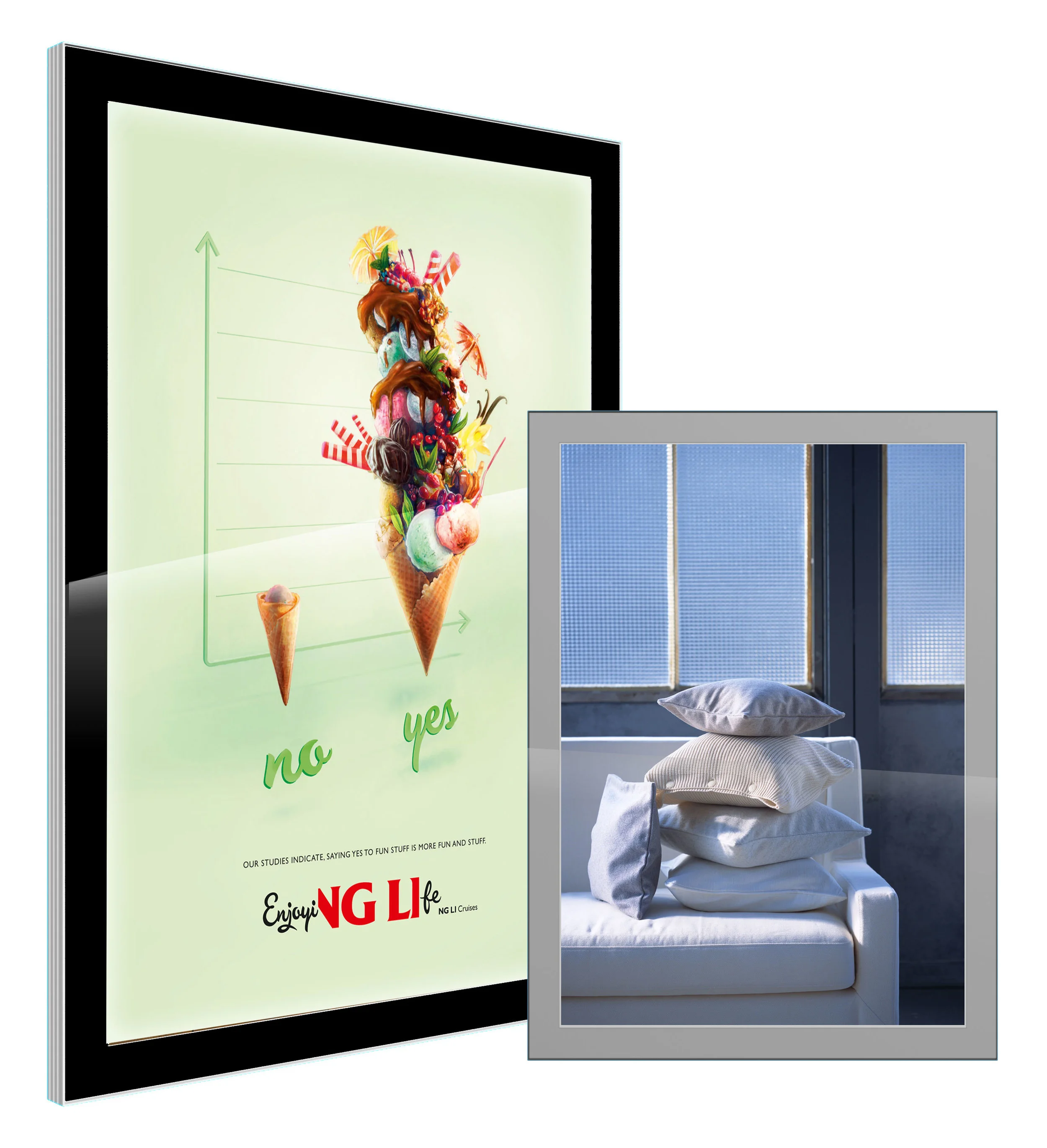

DL Front Open is the economical solution for small-medium sized display applications. It's suitable for Mount, Hang setups.

Every DL is built strictly based on Australian Standard and assembled in our Sydney production facility. We stock standard sizes and custom built to client's specifications.

The lightbox's chassis is made from the rigid DL34 aluminium extrusion, 34mm Deep, comes in Anodised Silver/ Satin Black Frame, with a standard 40mm Silver/Black matching border. The 30 years non-yellowing clear acrylic face is fitted with easy-to-access Magnetic Secure System, the image can be mounted using it's pre-applied re-usable double sided tape.

The lightbox is configured with Engraved Lumipanel® with PVC backing, edgelit setup using 12v efficient and bright LED strips.

This product is designed for indoor use only with 12 month warranty.



Front Open Series - DL




Overview

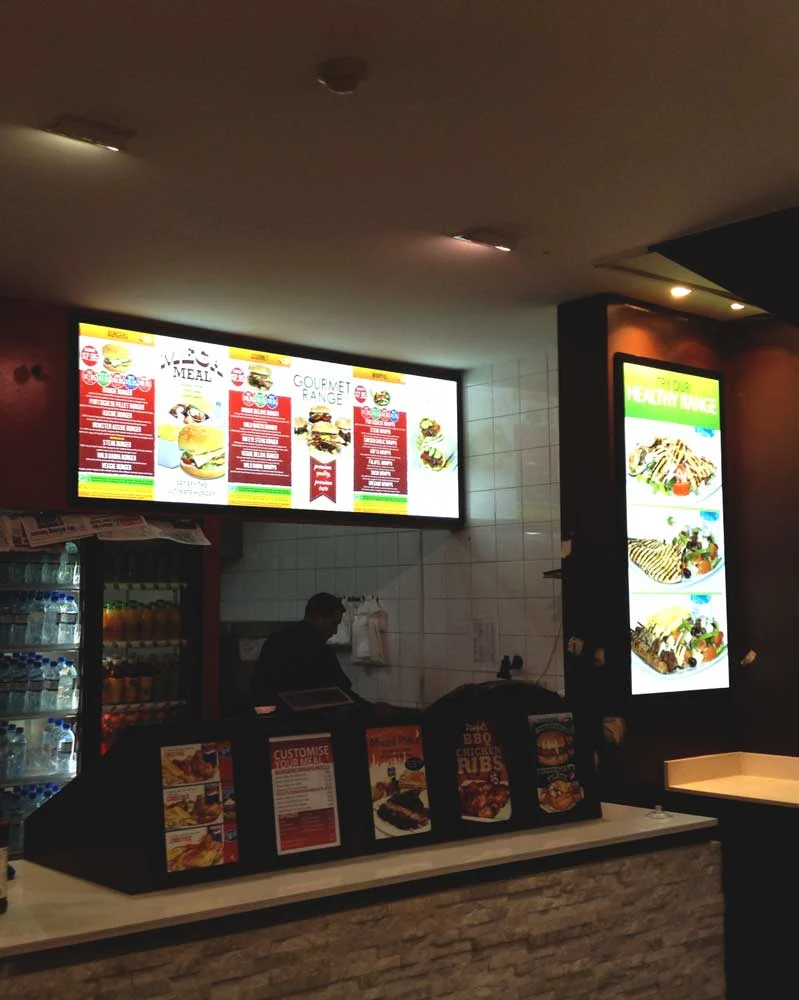

DL Front Open is designed for medium to large sized illuminated display applications, such as menu boards, high-quality backlit posters and backlit signage. It's suitable for wall mount and suspension setups.

DL's chassis is made from the rigid DL34 aluminium extrusion, 34mm deep and comes in an anodised silver/satin black frame, with a standard 40mm silver/black matching border. The 30 year non-yellowing edge-to-edge clear acrylic face is fitted with an easy-to-access magnetic secure system. The image can be mounted using pre-applied re-usable double sided tape or optional magnetic strips.

Recommended Sizes

LED Specs

600x600mm to 1200x2500mm

DL is configured with the industry leading lumiPANEL®. Edgelit setup using latest 12/24v efficient and durable(approx 40,000 hrs normal usage) high lumen density SMD LEDs, achieve up to 5000lux. Choose from 3000-10000 kelvin colour temperature. AC/DC adaptor/power supply included.

Warranty

Every DL is built strictly based on Australian Standard and assembled in our Sydney production facility. We stock standard sizes and custom built to client's specifications. This product is designed for indoor use only with 12 month warranty.




Product Specifications


Bezel Width 40mm (Vary) DL
Depth Height 34mm
Light Source LED
Availability Face Holder Face/Backing Light/Parts Installation
Custom Built A Snap-lock N/A 1mm clear PETG face N/A Edgelit S Outdoor use A
Standard Sizes A Magnetic S 2mm clear acrylic face O Backlit N/A Wall Mount S
Colour Lockable N/A 3mm clear acrylic face S Built-in adaptor N/A Freestanding O
Black  S Insert N/A 3mm opal acrylic face O External adaptor S Suspension O
Silver S Image Holder 3mm clear polycarbonate O 1m Cable S 3D Lettering O
Custom colour O Magnetic O 3mm PVC backing S Extended cable O
    Double side tape S 3mm ACP backing O
    Clip/Sandwich N/A S: Standard   O: Optional   A: Available   N/A: Not available


Standard Sizes

DLA1 660x910mm available in Silver or Black

DL918 900x1800mm available in Silver or Black

DL924 900x2400mm available in Silver or Black

DL218 1200x1800mm available in Silver or Black




Custom Built


Available on Slimbox® Store
