Slimbox ® is a renowned and established brand in Australian signage and display industries. We specialise in design, manufacture and distribute compact, versatile, aesthetic LED back lighting solutions to increase energy efficiency and reduce the carbon footprint for the signage, architectural, commercial and industrial market. Slimbox® product categories range from slim lightbox, magnetic front open lightbox, snap frame lightox, soft fabric lightbox, acrylic lightbox, menu lightbox, under awning lightbox, outdoor lightbox, directory lightbox, freestanding lightbox, LumiPANEL® and Digital Printing. We built entirely base on Australian Standards with 12 month warranty. We also stock standard sizes for same day delivery service to Sydney metro area and overnight service for most cities around the country.

TA

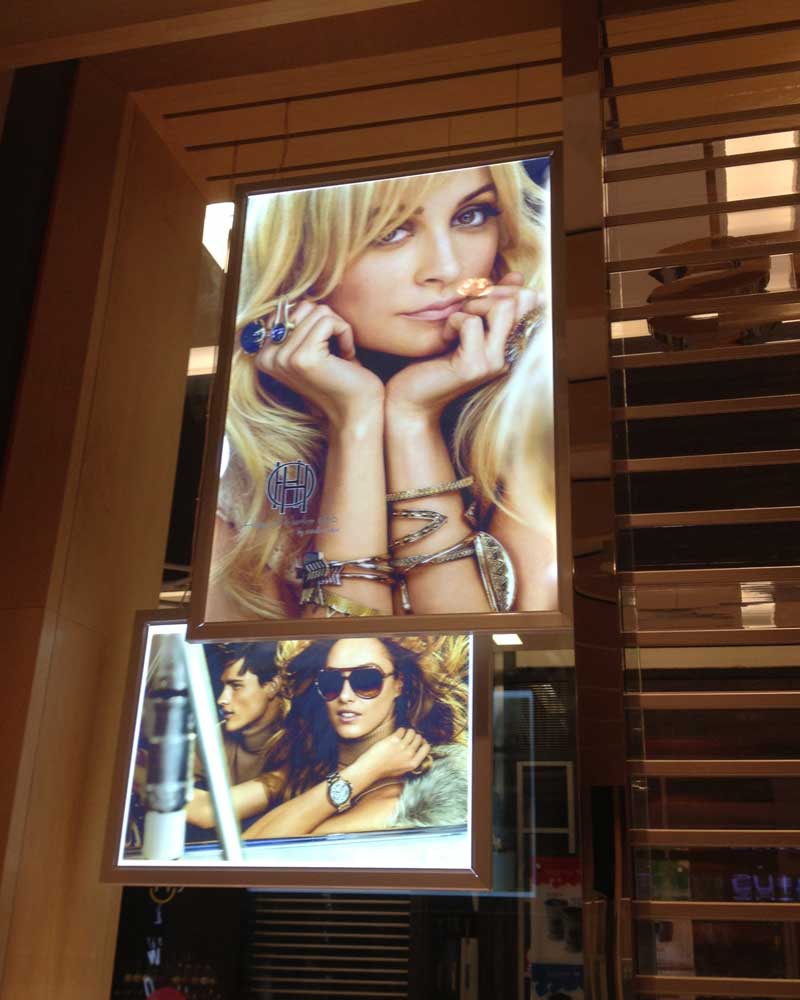

TA Snap Open has a appealing 2 parts round snap open design, it's designed for medium sized display applications. It's suitable for Mount setup.

Every TA is built strictly based on Australian Standard and assembled in our Sydney production facility. We stock standard sizes and custom built to client's specifications.

The lightbox's chassis is made from the easy to operate TA28 aluminium extrusion, 28mm Deep, comes in Anodised Silver/ Satin Black Frame, with a standard 40mm Silver/Black matching border. 2mm clear acrylic face is clipped in with Snap Secure System, the image is sandwiched in between the face the LumiPanel®

The lightbox is configured with ultra thin UV LumiPanel® with PVC backing, edgelit setup using 12v efficient and bright LED strips.

This product is designed for indoor use only with 12 month warranty.



Snap Open Series - TA




Overview

TA Snap Open has an appealing 2 part round snap open design. It's designed for medium to large sized display applications that require constant image change and is suitable for a wall mount setup.

The lightbox's chassis is made from the easy to operate TA28 aluminium extrusion, 28mm deep and comes in an anodised silver/satin black frame, with a standard 40mm silver/black matching border. The 2mm clear acrylic face is clipped in with a snap secure system and the image is sandwiched in between the face of the lumiPANEL®.

Recommended Sizes

400x400mm to 1200x2400mm

LED Specs

TA Snap Open is configured with the industry leading lumiPANEL®. Edgelit setup using latest dual 12/24v efficient and durable(approx 40,000 hrs normal usage) high lumen density SMD LEDs, achieve up to 5000lux. Choose from 3000-10000 kelvin colour temperature. AC/DC adaptor/power supply included.

Warranty

Every TA is built strictly based on Australian Standard and assembled in our Sydney production facility. We stock standard sizes and custom built to client's specifications. This product is designed for indoor use only with 12 month warranty.




Product Specifications


Bezel Width 40mm (FIX) TA
Depth Height 28mm
Light Source LED
Availability Face Holder Face/Backing Light/Parts Installation
Custom Built A Snap-lock S 1mm clear PETG face N/A Edgelit S Outdoor use N/A
Standard Sizes A Magnetic N/A 2mm clear acrylic face S Backlit N/A Wall Mount S
Colour Lockable N/A 3mm clear acrylic face O Built-in adaptor N/A Freestanding O
Black  S Insert N/A 3mm opal acrylic face O External adaptor S Suspension O
Silver S Image Holder 3mm clear polycarbonate O 1m Cable S 3D Lettering O
Custom colour O Magnetic N/A 3mm PVC backing S Extended cable O
    Double side tape N/A 3mm ACP backing O
    Clip/Sandwich S S: Standard   O: Optional   A: Available   N/A: Not available


Standard Sizes

TAA2 485x660mm available in Silver/Black

TAA1 660x910mm available in Silver/Black

TAA0 910x1260mm available in Silver/Black

Custom Built

Available on Slimbox® Store

SNAP OPEN - TA A1 910x660mm
SNAP OPEN - TA A1 910x660mm
from A$290.00

TAA1 910x660mm

Designed and Assembled in Sydney, 12 Month Warranty;

Available to Ship: Limited stock, Australia Wide;

Prices are exclusive of GST & delivery charges.
