Slimbox ® is a renowned and established brand in Australian signage and display industries. We specialise in design, manufacture and distribute compact, versatile, aesthetic LED back lighting solutions to increase energy efficiency and reduce the carbon footprint for the signage, architectural, commercial and industrial market. Slimbox® product categories range from slim lightbox, magnetic front open lightbox, snap frame lightox, soft fabric lightbox, acrylic lightbox, menu lightbox, under awning lightbox, outdoor lightbox, directory lightbox, freestanding lightbox, LumiPANEL® and Digital Printing. We built entirely base on Australian Standards with 12 month warranty. We also stock standard sizes for same day delivery service to Sydney metro area and overnight service for most cities around the country.

DLX Bold

DLX Bold features extra weather proofing features;

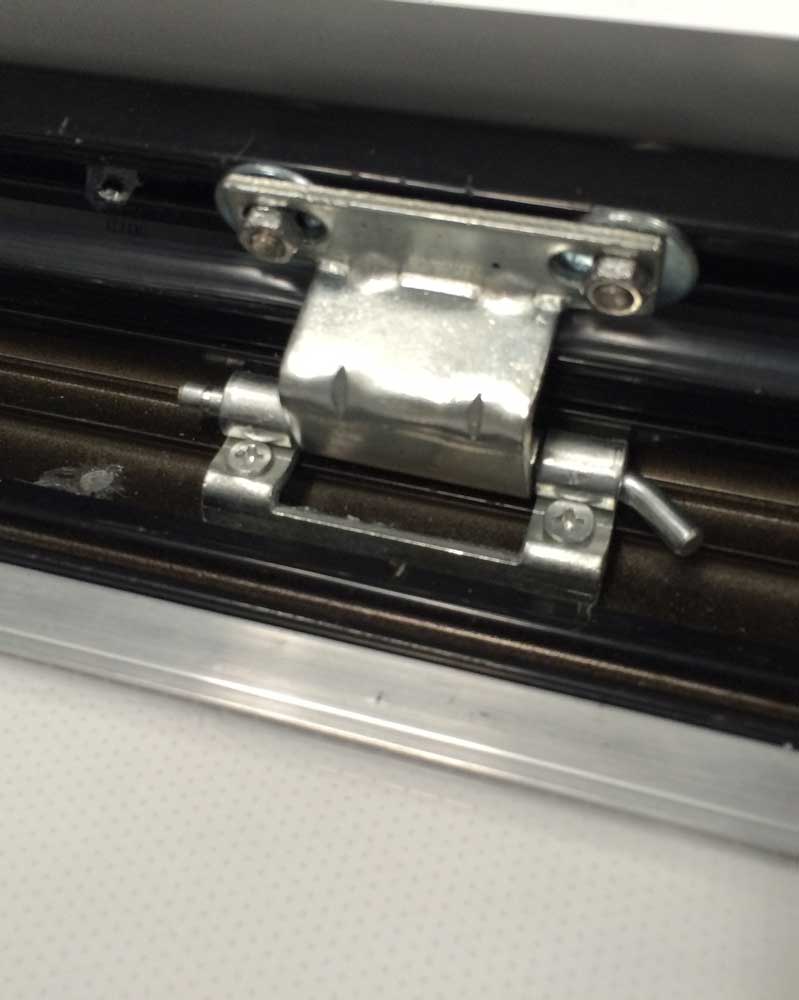

Exclusively designed hinge for easy opening and durable door;

Efficient yet extremely bright LED Edgelit setup as standard, 4000-6000lux;

Suitable for harsh environment, especially for jobs that require image to be changed constantly, for example bus stop and outdoor directory signage;

Magnetic poster fixing built-in;

Designed and assembled in Sydney, custom built to client’s specifications;

Rigid 2 parts aluminium extrusion, suitable for size up to 1500x3000mm;

Powered by industry leading LumiPanel®, 30 years non-yellow;

Scratch resistant anodised silver and satin black as standard, plus custom paint;

Comes with one pre-installed Quality Density Print as standard, Powered by OCE Arizona.



Hinge Open Series - DLX Bold




Overview

DLX Bold Hinge Open is designed for medium to large size illuminated display applications that require external use capability with enhanced water resistance and maximum security. Suitable for jobs such as pub, cinema and bus stop signages. It can be wall mounted and suspended.

DLX Bold's chassis is made from the rigid 2 part DLX55 aluminium extrusion, 55mm deep including door and base and it comes in an anodised silver/satin black frame, with a standard 55mm silver/black matching border. The 30 year non-yellowing edge-to-edge clear acrylic/polycarbonate face is fitted with an easy-to-access turn lock system and the image can be mounted using pre-applied magnetic strips.

Recommended Sizes

900x900mm to 1500x3000mm

LED Specs

DLX Bold can be configured with industry leading waterproof lumiPanel®, It can be fitted with both backlit and edgelit LED setups using latest 12/24v efficient and durable(approx 40,000 hrs normal usage) high lumen density SMD LEDs, achieve up to 7000lux. Choose from 3000-10000 kelvin colour temperature. AC/DC adaptor/power supply included.

Warranty

Every DLX Bold is built strictly based on Australian Standard and assembled in our Sydney production facility. DLX Bold can only be custom built. This product is designed for indoor and outdoor use with 12 month warranty.

*Limited protection from condensation, require outdoor-grade print.




Product Specifications


Bezel Width 60mm (Vary) DLXB
Depth Height 55mm
Light Source LED
Availability Face Holder Face/Backing Light/Parts Installation
Custom Built A Snap-lock N/A 1mm clear PETG face N/A Edgelit S Outdoor use S
Standard Sizes A Magnetic N/A 2mm clear acrylic face O Backlit O Wall Mount S
Colour Lockable S 3mm clear acrylic face S Built-in adaptor O Freestanding O
Black  S Insert N/A 3mm opal acrylic face O External adaptor S Suspension O
Silver S Image Holder 3mm clear polycarbonate O 1m Cable S 3D Lettering N/A
Custom colour O Magnetic O 3mm PVC backing S Extended cable O
    Double side tape S 3mm ACP backing O
    Clip/Sandwich N/A S: Standard   O: Optional   A: Available   N/A: Not available
